Tuotetiedot

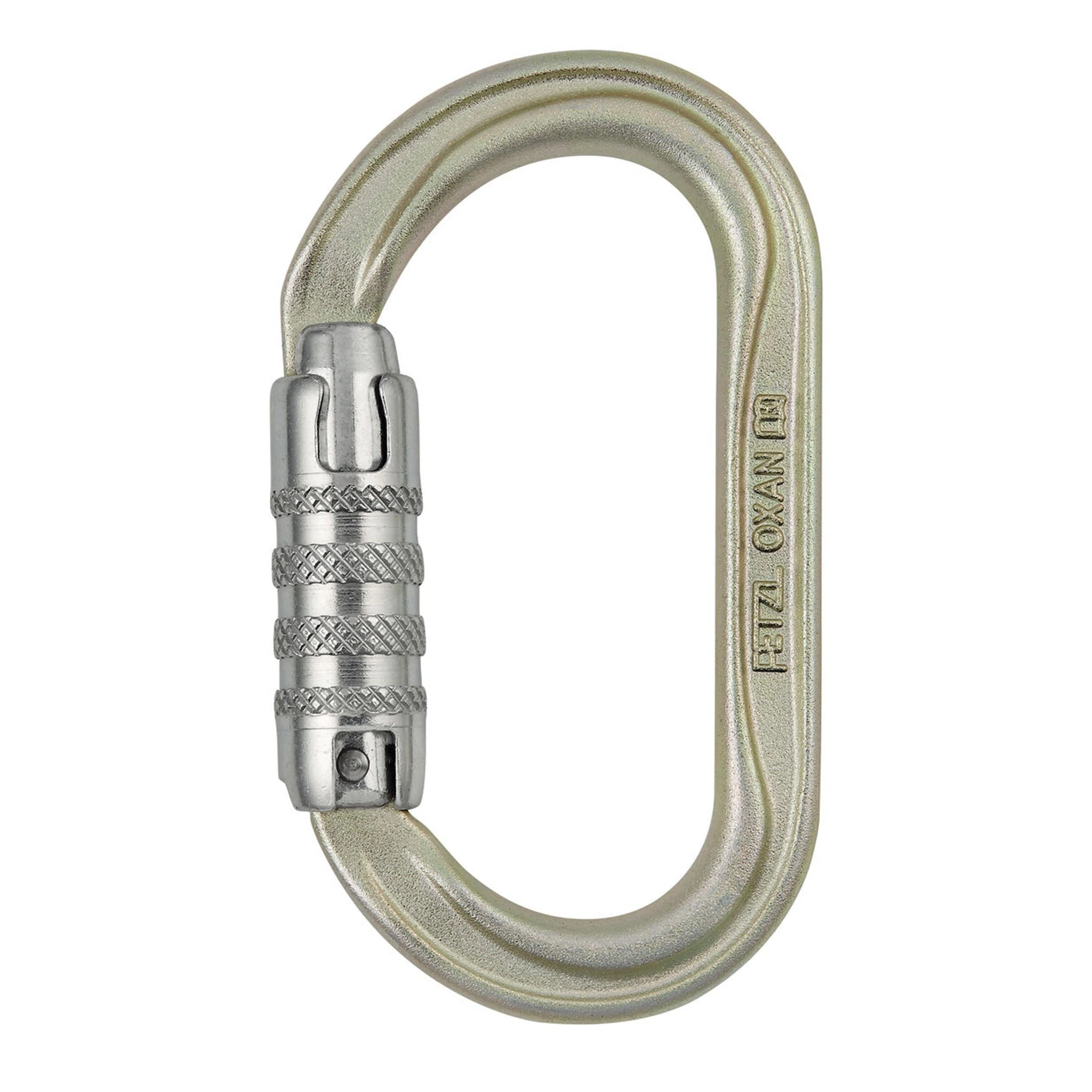

OXAN is a high-strength steel carabiner designed for use in difficult environments. The oval, symmetrical shape allows optimal loading of the carabiner when setting up anchors or connecting to metal structures.

It is available in two locking systems: automatic TRIACT-LOCK system or manual SCREW-LOCK system. OXAN TRIACT-LOCK is available in European or international versions. OXAN can be connected to the CAPTIV bar to favor positioning of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.

Features

• High-strength steel carabiner for use in harsh environments, particularly suitable for setting up anchors or for connecting to metal structures

• Oval symmetrical shape allows optimal positioning of the carabiner

• May be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to keep it integrated with the device, and to limit the risk of it flipping

• Easier handling:
  - fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
  - Keylock system to avoid any involuntary snagging of the carabiner

• H cross-section:
  - ensures an optimal strength/weight ratio
  - protects markings from abrasion

Specifications

• Material(s): steel
• Certification(s): CE EN 362, ANSI Z359.12, NFPA 2500 Technical Use, CSA Z259.12, EAC, UKCA
• Weight: 185 g
• Locking System: TRIACT-LOCK
• Major axis strength: 38 kN
• Minor axis strength: 16 kN
• Open gate strength: 15 kN
• Gate opening: 20 mm
