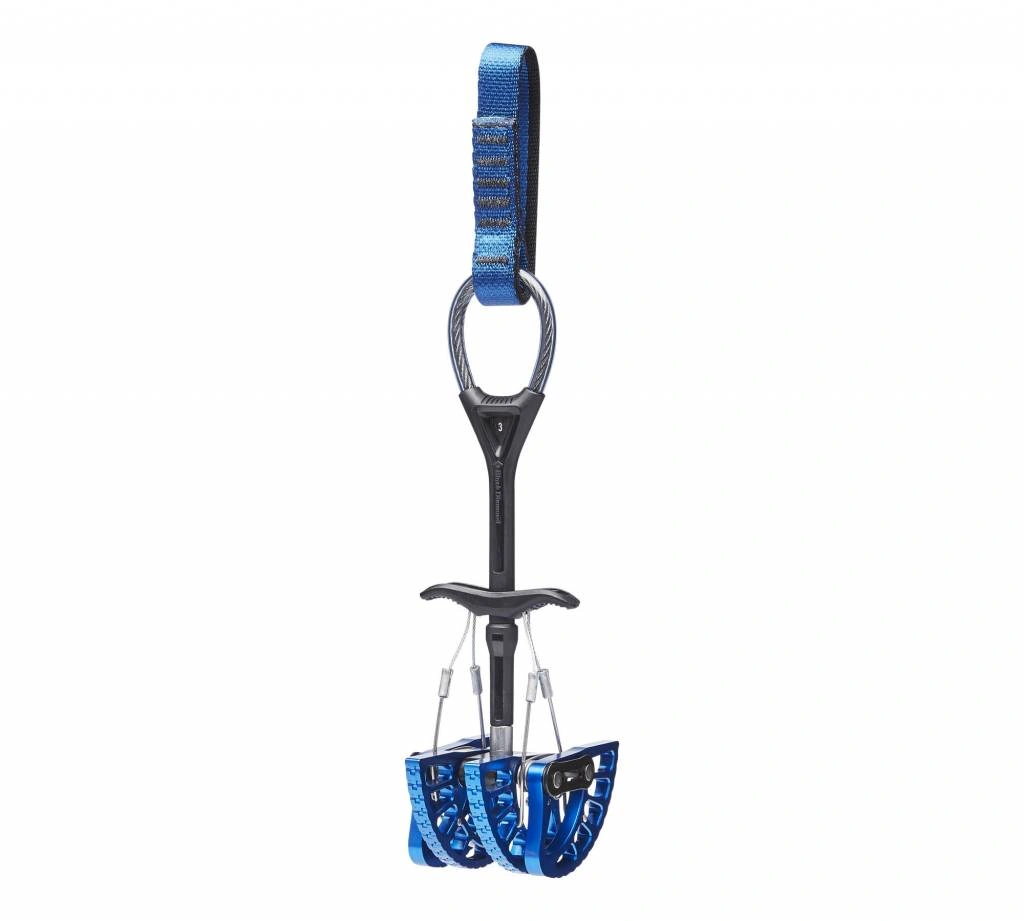

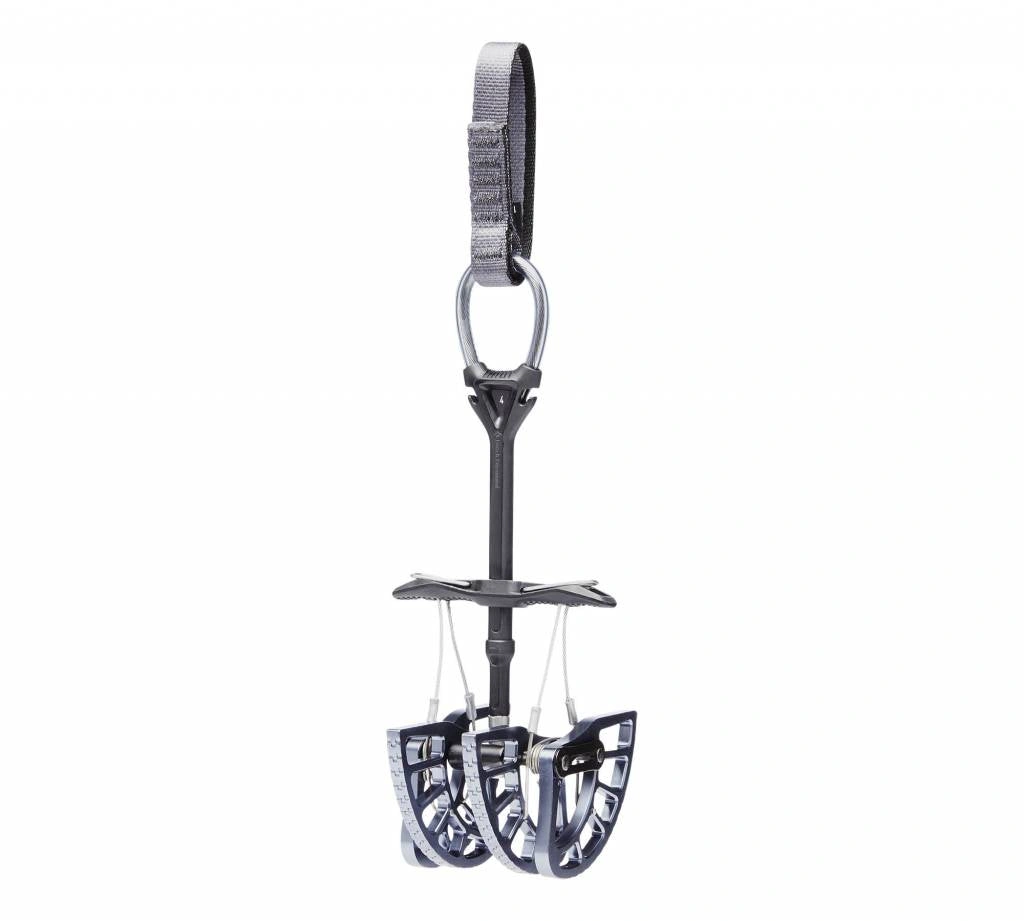

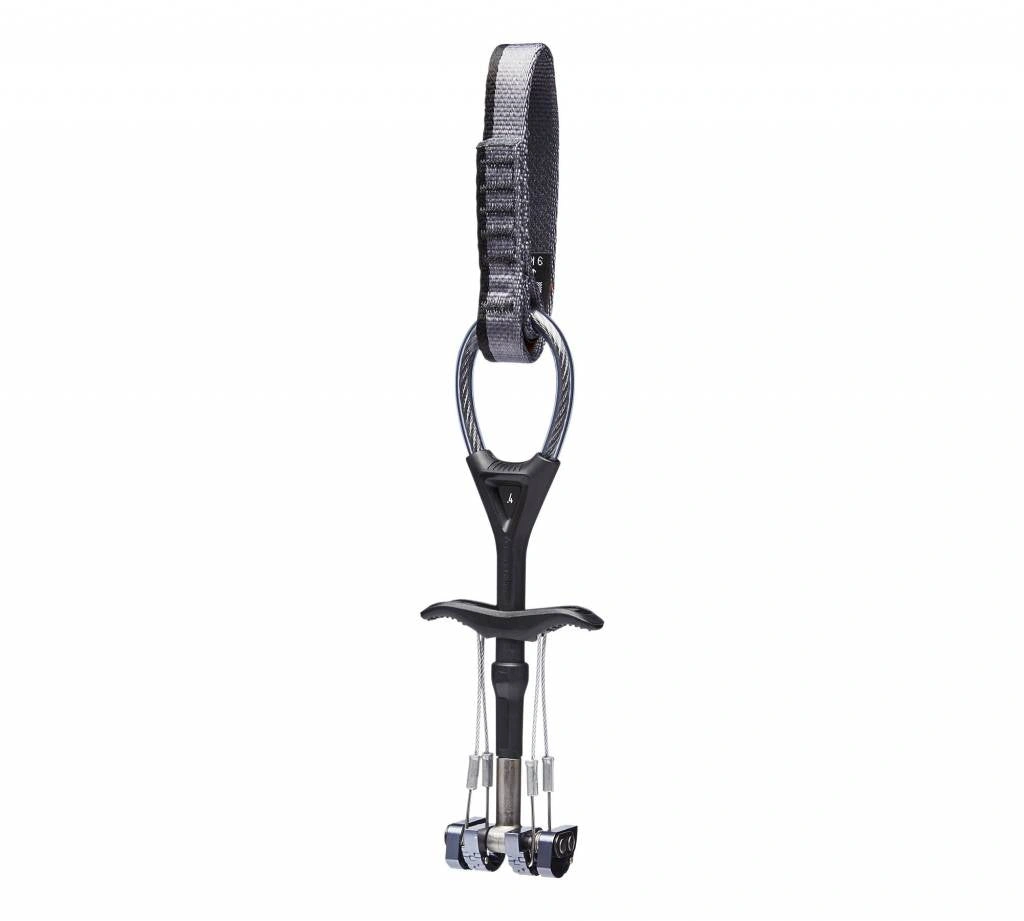

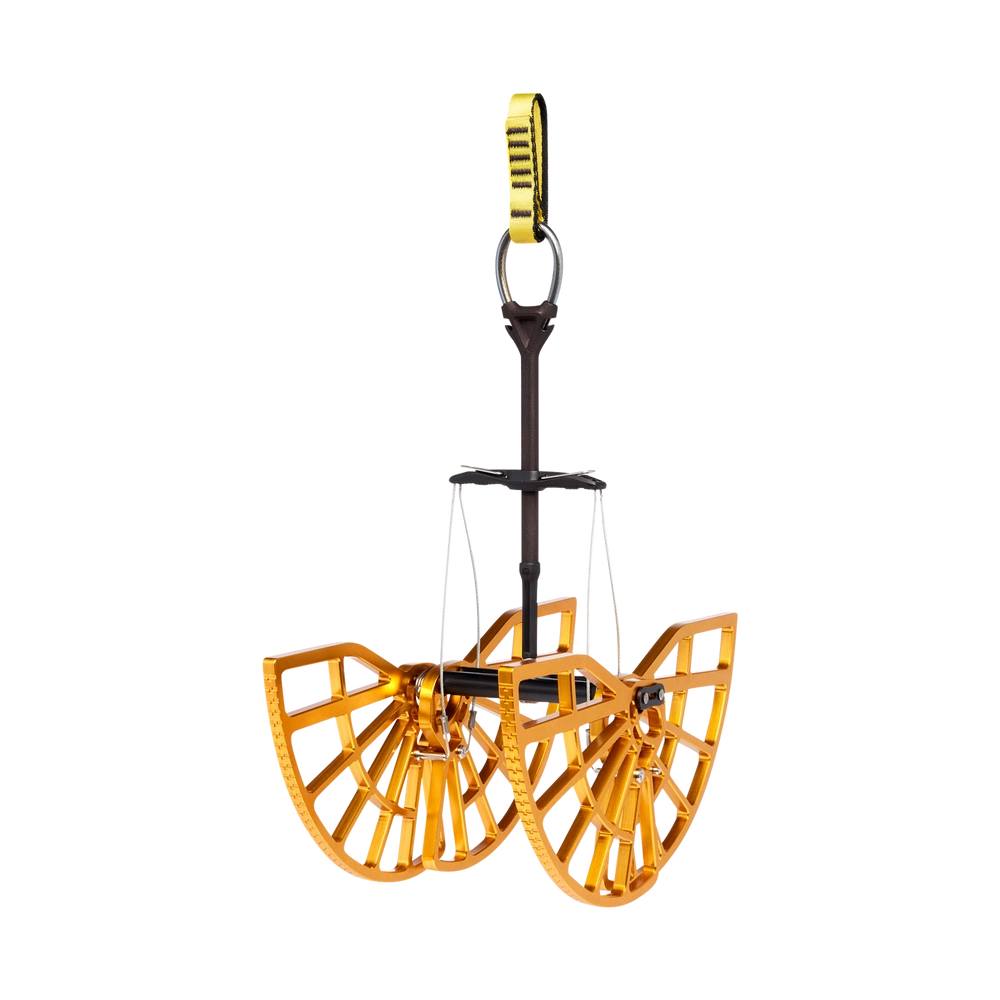

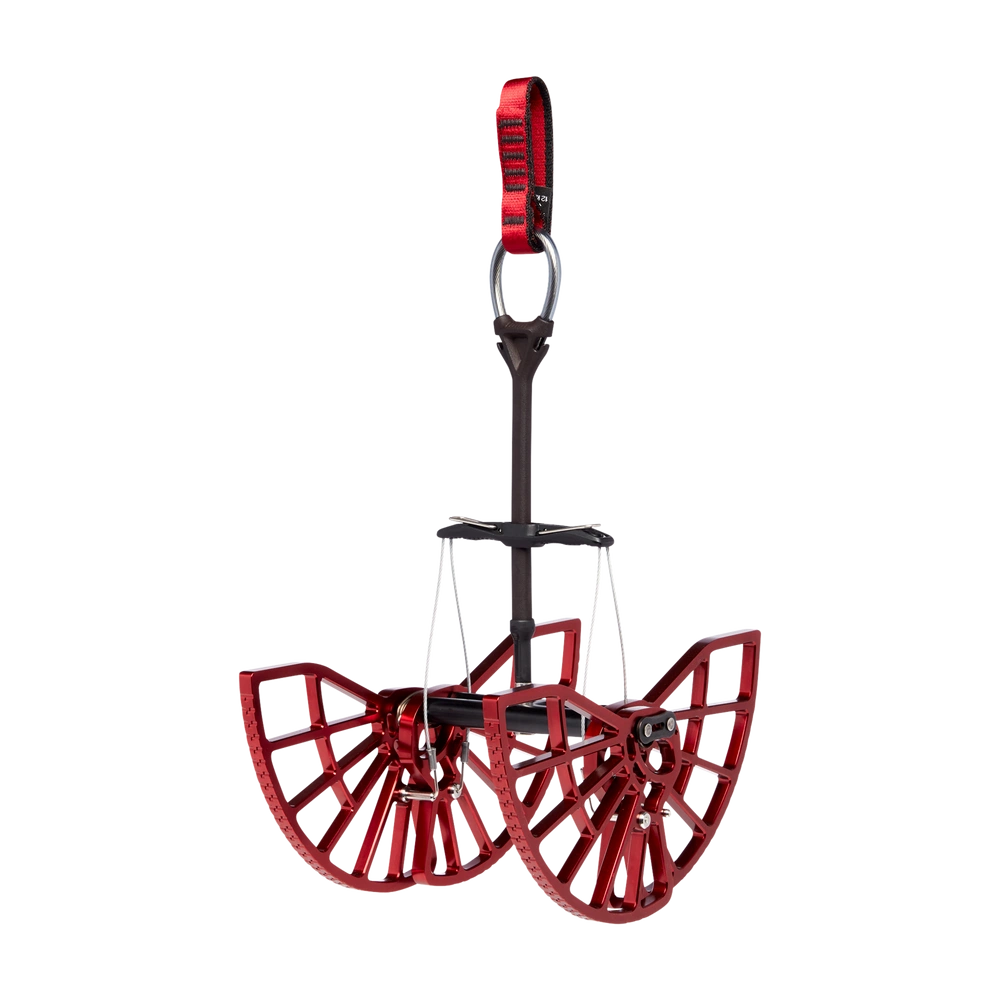

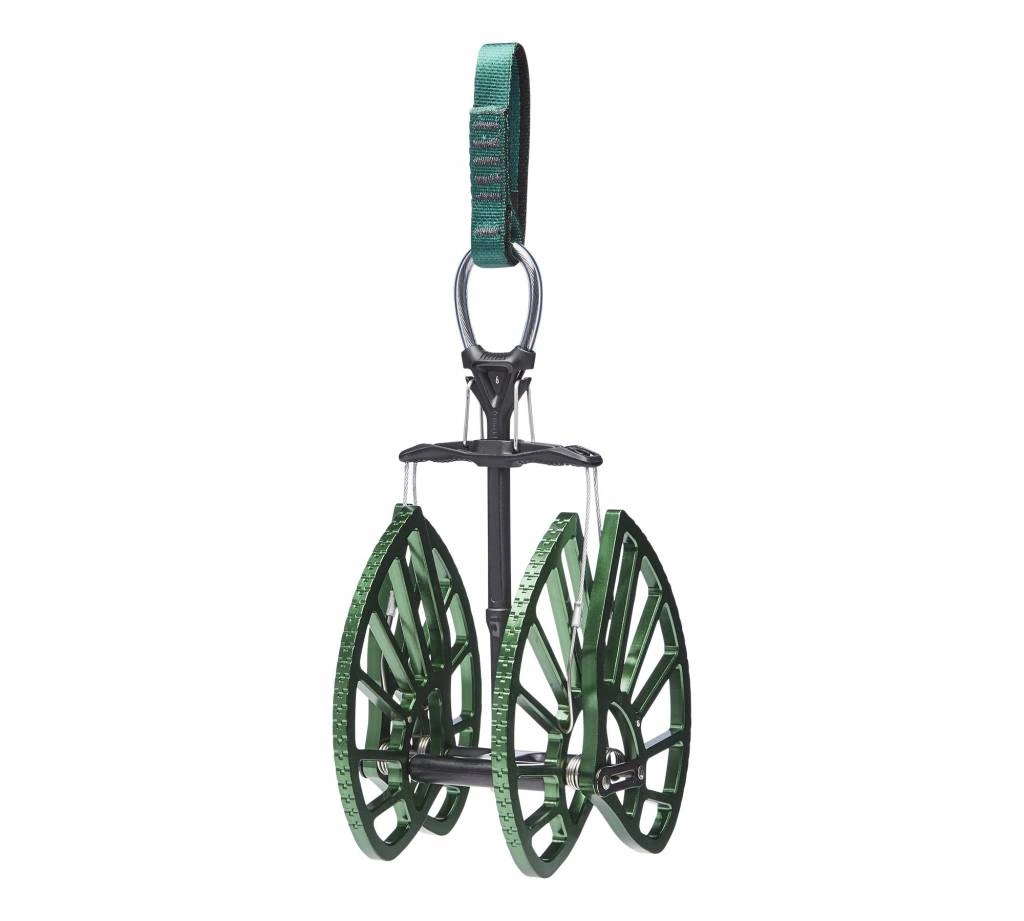

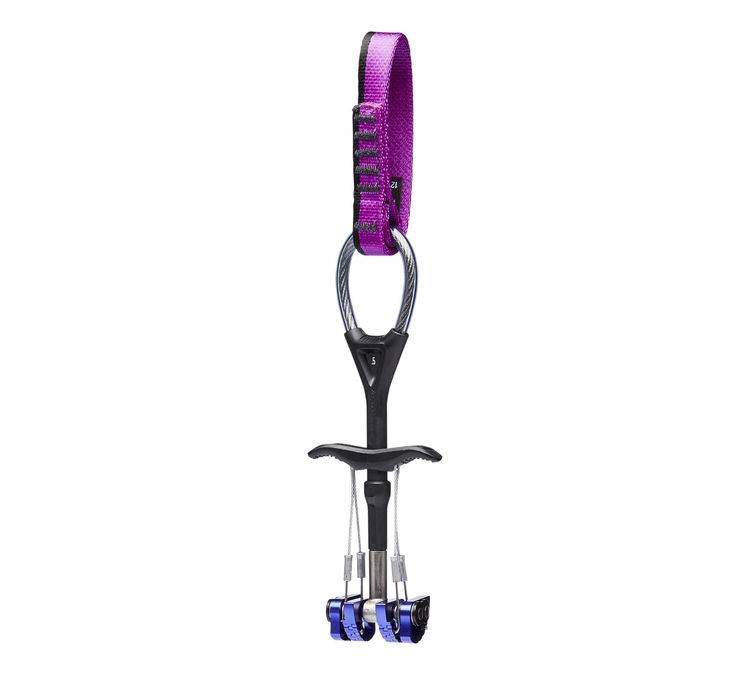

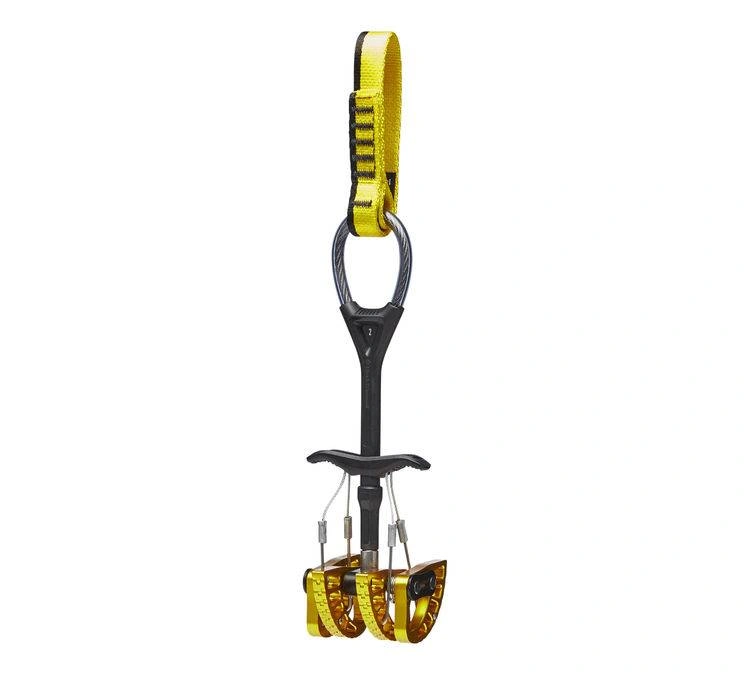

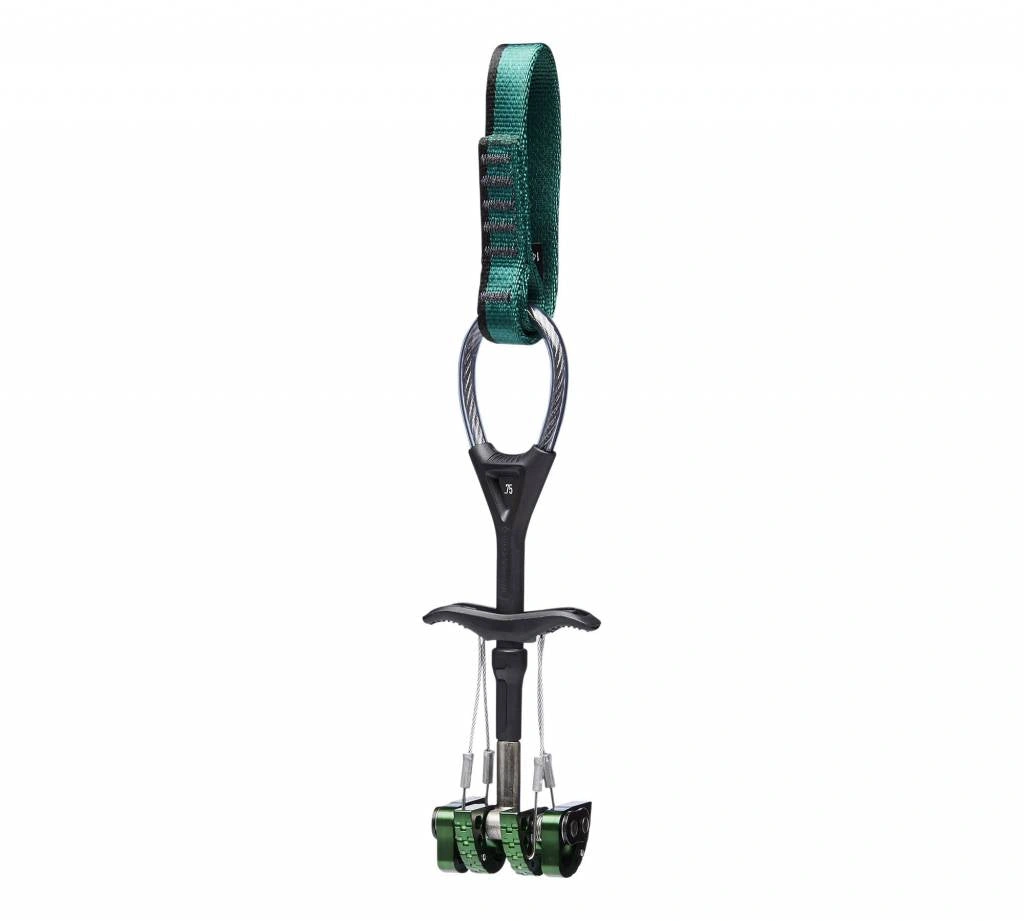

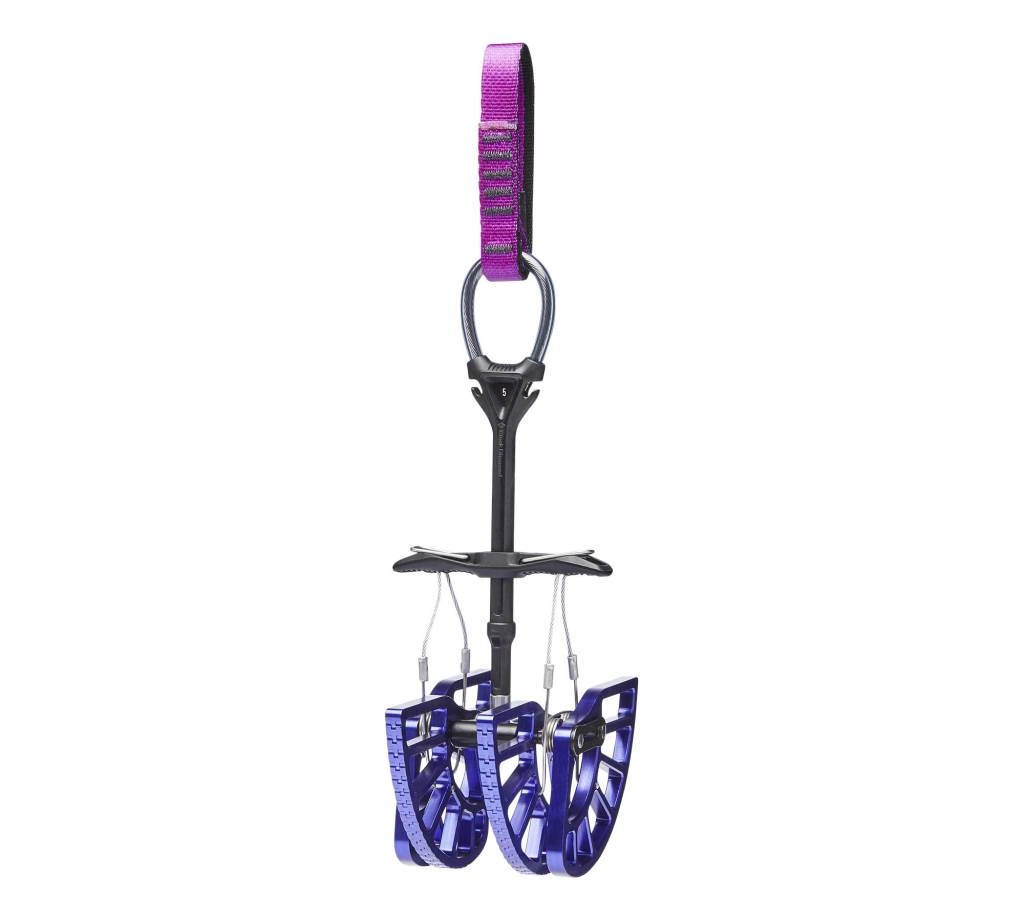

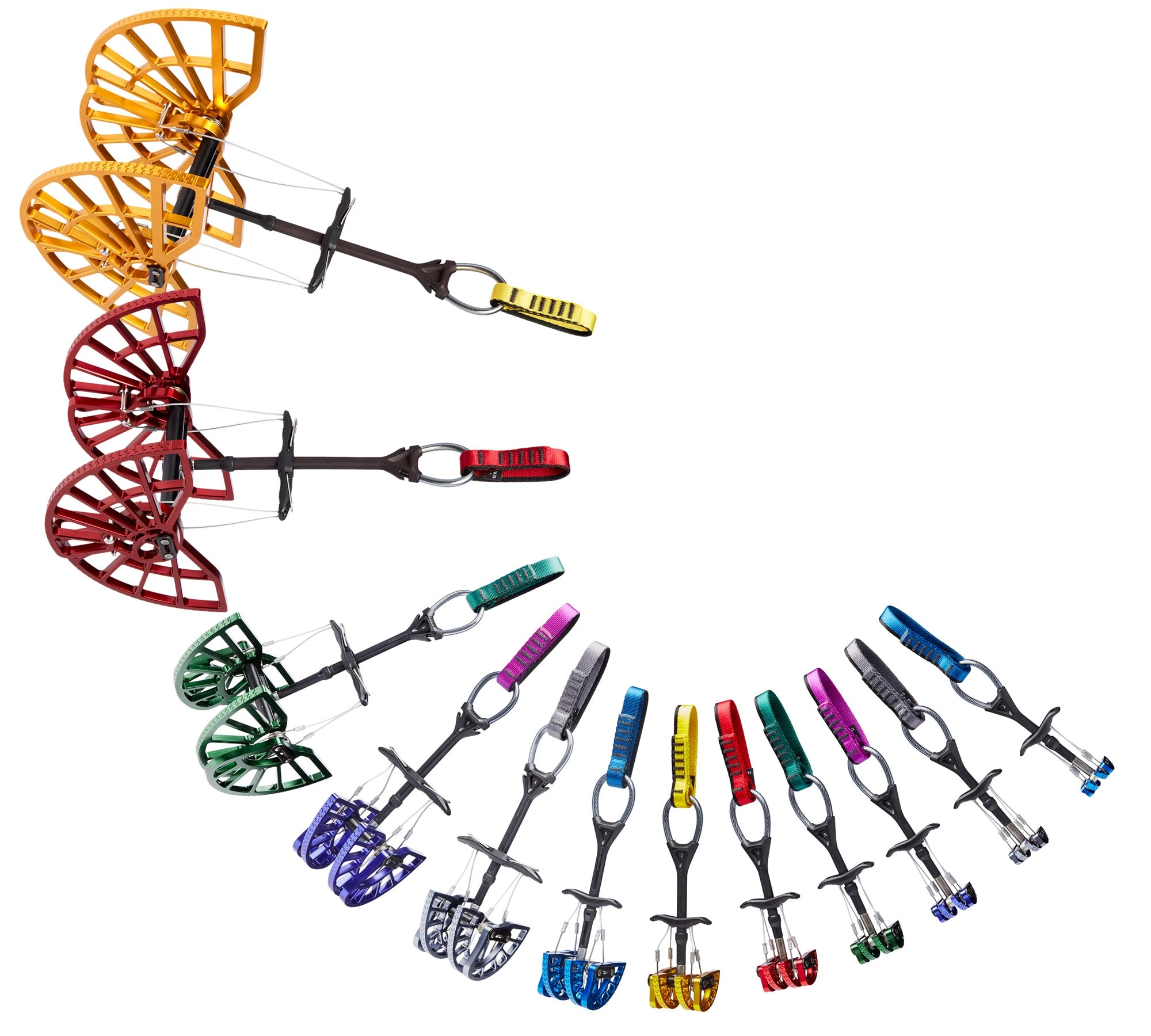

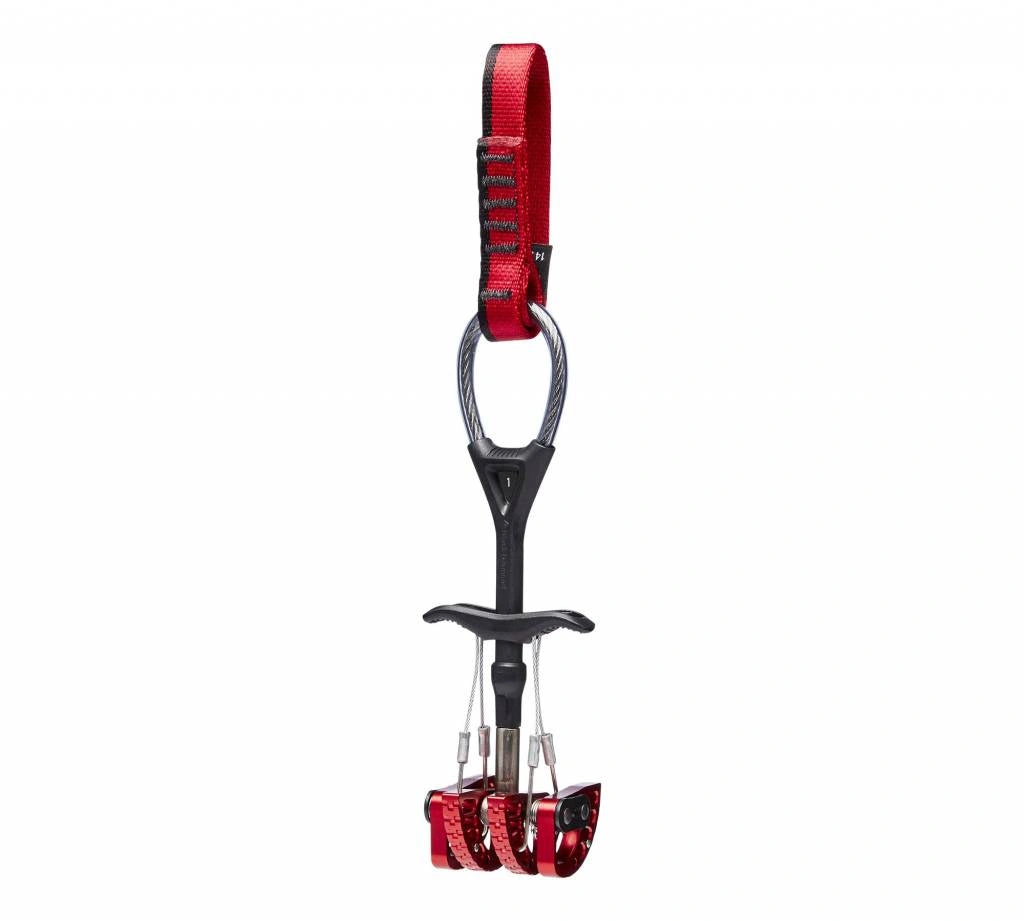

The world’s best-selling, most trusted cam just got better. The new, redesigned Camalot C4 has now upped the ante, considering it’s 10% lighter yet just as durable as before. Plus, it features a modern design that improves on the old tried-and-true Camalots. The cam’s lobes are lighter and more sculpted, optimized for strength to weight, while the slings have a visual update for easier differentiation when racking. And speaking of racking, Black Diamond is introducing a new innovative trigger keeper on sizes #4, #5, and #6, that keeps the big guys contracted for compact racking and immediately release when you’re ready to place. They’ve also widened the trigger for better handling.

Features

• New design is 10% lighter
• Innovative trigger keeper on sizes #4, #5, #6, #7, and #8 for compact racking
• Double-axle design offers the widest range for each cam unit
• C-Loop continuous cable stem design is strong and durable
• LiteWire Rackpack available for easy racking

Weight

• [.3] 69.8 g
• [.4] 77.5 g
• [.5] 93 g
• [.75] 107.5 g
• [1] 123.9 g
• [2] 140.3 g
• [3] 181.1 g
• [4] 257.8 g
• [5] 348.1 g
• [6] 529.9 g
• [7] 710 g
• [8] 974 g

Range

• [.3] 13.8-23.4 mm (0.54-0.92 in)
• [.4] 15.5-26.7 mm (0.61-1.05 in)
• [.5] 19.6-33.5 mm (0.77-1.32 in)
• [.75] 23.9-41.2 mm (0.94-1.62 in)
• [#1] 30.2-52.1 mm (1.19-2.05 in)
• [#2] 37.2-64.9 mm (1.46-2.55 in)
• [#3] 50.7-87.9 mm (2.00-3.46 in)
• [#4] 66.0-114.7 mm (2.60-4.51 in)
• [#5] 85.4-148.5 mm (3.36-5.85 in)
• [#6] 114.1-195.0 mm (4.50-7.68 in)
• [#7] 150-253.5 mm (5.9-9.98 in)
• [#8] 193-321 mm (7.6-12.6 in)

Strength

• [.3] 8 kN (1,798 lbf)
• [.4] 9 kN (2,023 lbf)
• [.5] 12 kN (2,698 lbf)
• [.75] 12 kN (2,698 lbf)
• [#1] 12 kN (2,698 lbf)
• [#2] 12 kN (2,698 lbf)
• [#3] 12 kN (2,698 lbf)
• [#4] 14 kN (3,147 lbf)
• [#5] 14 kN (3,147 lbf)
• [#6] 14 kN (3,147 lbf)
• [#7] 8 kN (1,798 lbf)
• [#8] 5 kN (1,124 lbf)
