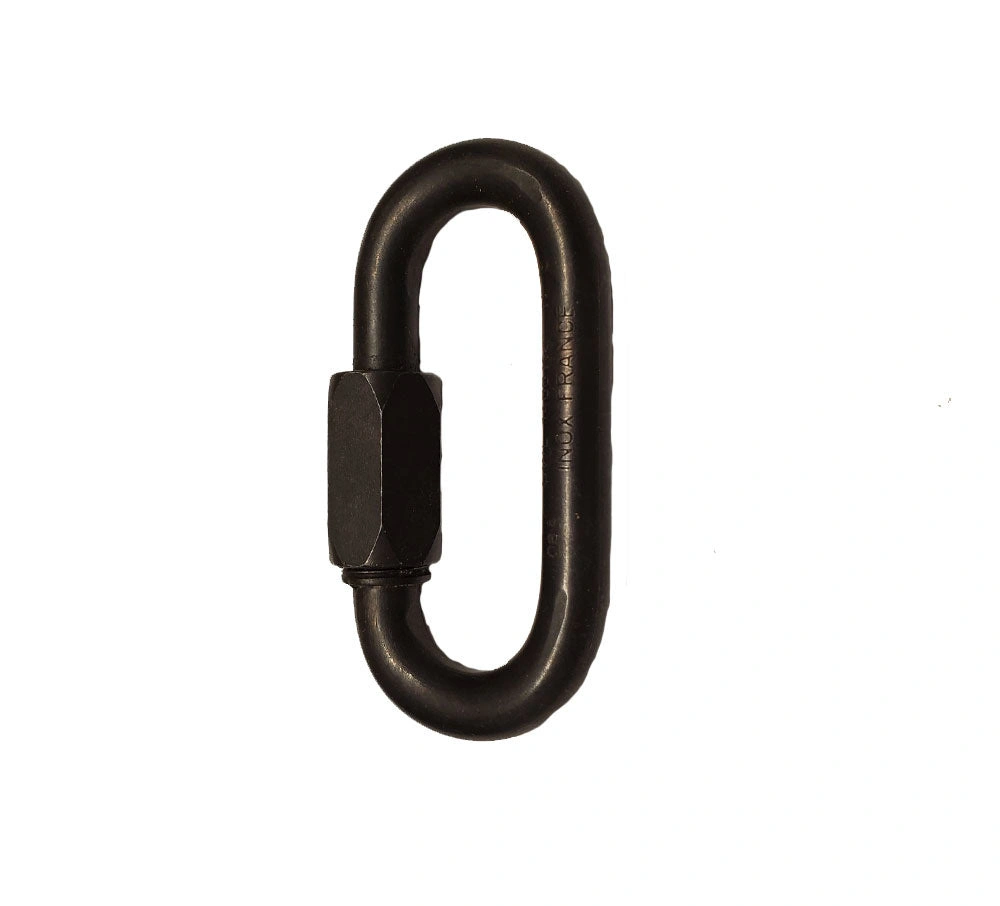

The original oval shape was developed on the principle of a chain link fitted with manual nut opening. This shape reflects the spirit of Maillon Rapide quick links connectors.

Materials

• Stainless Steel
• Rod: Standard X2 Cr Ni, Mo 17-12-2 (1.4404), AISI 316L
• Nut: Standard X2 Cr Ni
• 18/12 chrome-molybdenum steel with very low carbon content, protected from inter-granular corrosion. (Rod & Nut)
• Fit in environments where 18.10 steels stand up corrosion, excepted those involving nitric acid. (Rod & Nut)
• 2/2,5 molybdenum content allowing its use in more applications than those complying with 18.10 steels, particularly with sulphuric acids and chlorides in marine environments. (Rod & Nut)

Specifications

• Diameter: 9MM or 3/8'
• HT: 80mm
• HI: 62mm
• A: 19mm
• O: 11mm
• E: 26mm
• T: 12mm
• Weight: 105g (0.2315 lbs)
• Working Load: 1400kg (3086 lbs)
• Breaking Load: 7000kg (15,430 lbs)
